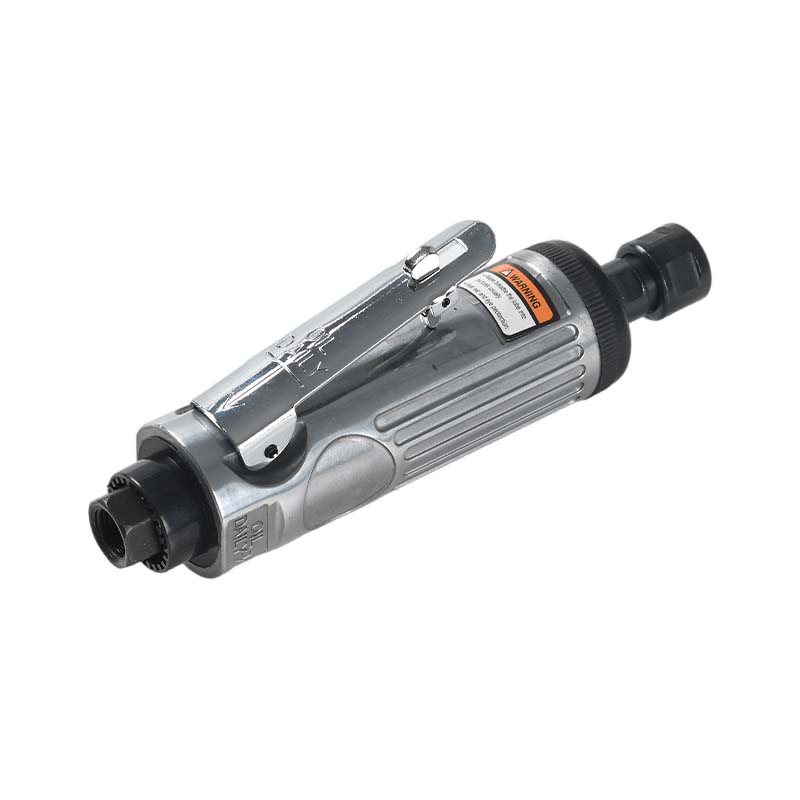

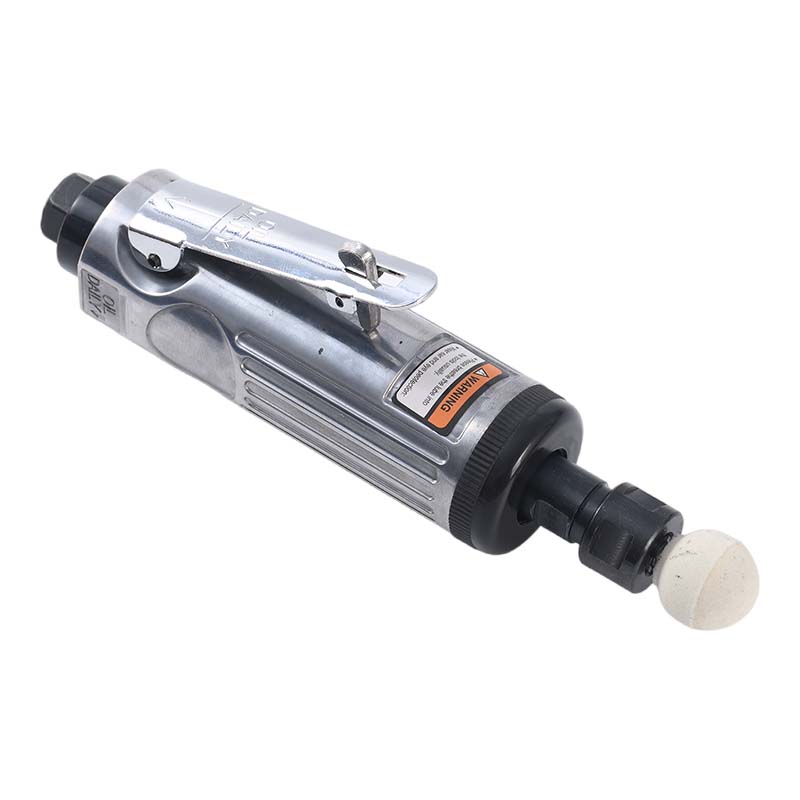

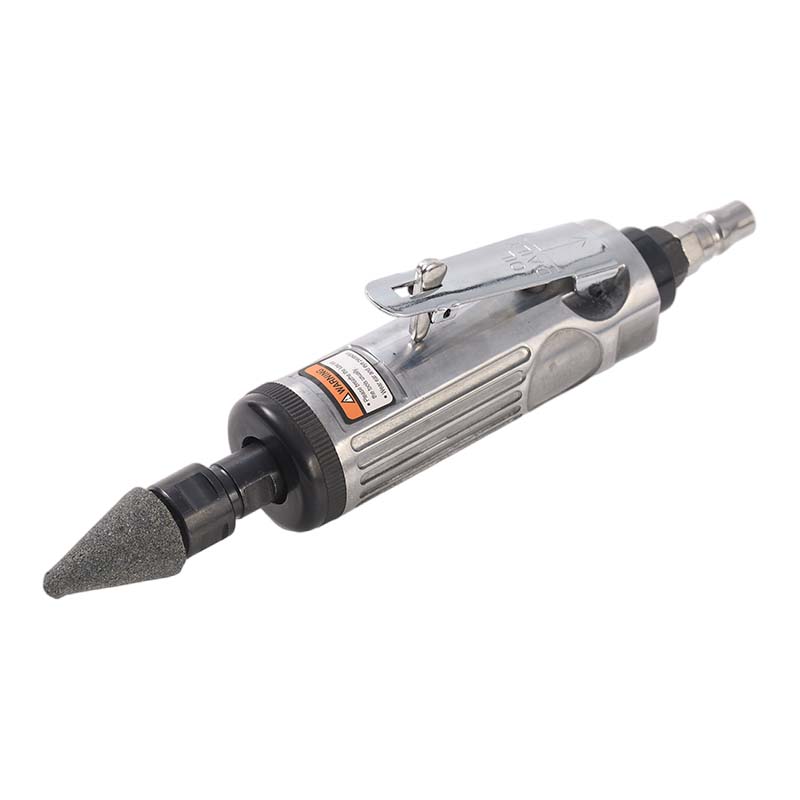

Pneumatic die grinders are precision small air tools powered by compressed air to drive vanes at high speed. Equipped with front chucks to hold grinding bits, grinding wheels and rotary files, they are widely used for metal grinding, weld polishing, burr removal and mold finishing, popular in mold factories, hardware processing and auto repair industries. The lightweight integral die-cast aluminum housing adopts high-hardness alloy steel spindles and vanes for high strength and deformation resistance. Available in straight and angled models to fit flat surfaces, inner corners and deep hole inner walls. Featuring high rotating speed, fine cutting performance, low heat generation and slight vibration during long continuous operation.
1. Housing: Integral die-cast aluminum alloy, lightweight, impact & pressure resistant, anti-corrosion against cutting fluid and engine oil, no cracking after long workshop service.
2. Spindle & Air Vane: Precisely processed high-hardness alloy steel with dynamic balance treatment, stable high-speed rotation and low abrasion.

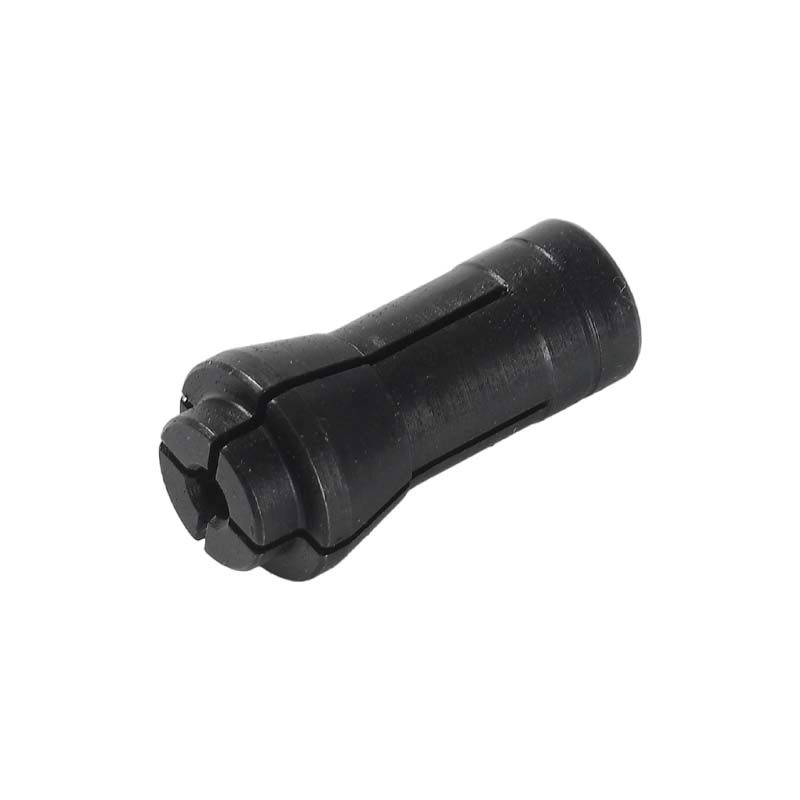

3. Chuck Assembly: Steel self-locking chuck firmly holds grinding bits without slipping, easy to replace consumables, compatible with standard 3mm / 6mm shanks.
4. Air Inlet Joint: Forged brass standard pneumatic connector with excellent sealing, air leakage free, matched with universal 3/8 air hoses.
5. Anti-Slip Rubber Grip: Covered with soft rubber to buffer high-speed vibration and relieve hand fatigue after long-hour operation.
1. Compatible Shank Sizes: 3mm, 6mm dual universal chuck
2. No-Load Speed: 22000–35000 RPM, high-speed grinding for superior smooth surface finish
3. Standard Air Consumption: 55–110 L/min (1.9–3.9 CFM), suitable for air compressors working at 6–8 bar

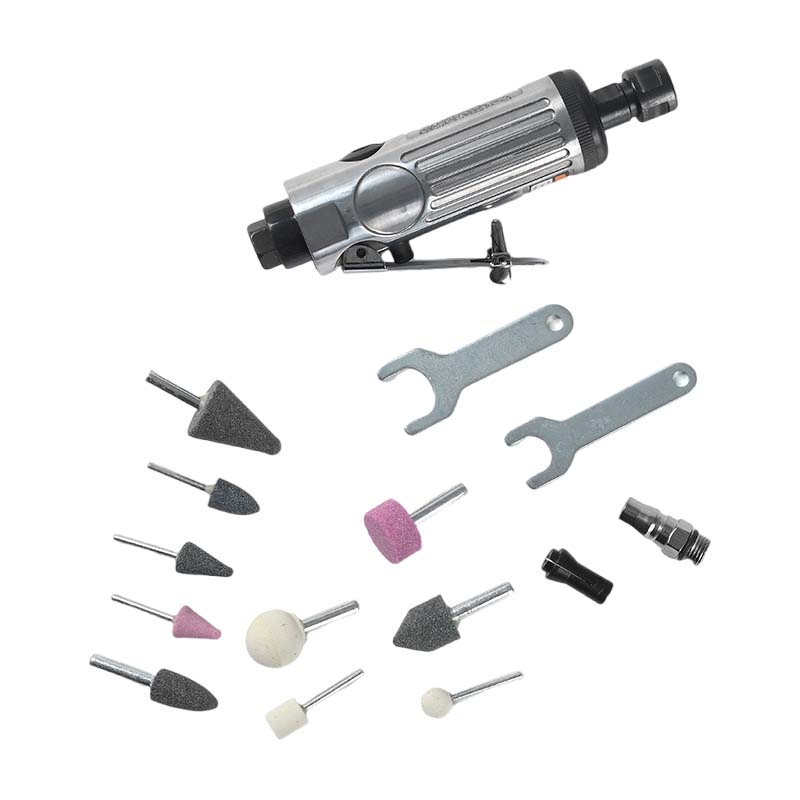

4. Applicable Consumables: Cylindrical grinding bits, rotary files, grinding wheels, polishing cloth wheels, diamond grinding pins
5. Workpiece Materials: Carbon steel, aluminum alloy, copper, cast iron, plastic molds
1. Two body styles: straight type for flat and large-area grinding; angled type for inner corners, weld seams and narrow deep holes.
2. Ultra-high no-load speed improves grinding efficiency, leaving smooth scratch-free surface after deburring and polishing.
3. High-precision balanced alloy steel spindle delivers slight vibration at high speed, reducing consumable loss and improving processing accuracy.
4. Firm self-locking steel chuck prevents grinding bit loosening during work, with fast and simple consumable replacement.
5. Air-driven design generates no motor heat, supporting all-day non-stop processing for high-frequency assembly line work.
6. Compact lightweight single-hand structure, accessible to narrow mold cavities and equipment gaps.
Mold polishing and edge trimming, metal weld grinding, casting burr removal, auto wheel rust cleaning, engine carbon deposit clearance, aluminum alloy shaping, plastic mold mirror polishing, stamping part chamfering, stainless steel pipe inner hole grinding.
1. Keep operating air pressure steady at 6–8 bar; overpressure operation is forbidden to avoid overload fracture of spindle and vanes.
2. Inject dedicated pneumatic lubricating oil via air inlet before daily use, idle for 2 seconds to fully lubricate internal components.
3. Only use intact grinding bits without cracks; damaged grinding wheels and pins are prohibited to prevent flying fragments at high speed.
4. Safety goggles, dust mask and work gloves must be worn during operation to avoid dust and debris injury.
5. Cut off air supply and wait for full spindle stop before replacing grinding bits or disassembling maintenance.
6. Drain condensed water in pipelines and fill lubricant before long-term storage, store in cool dry ventilated space.
