Ceiling fastener tools, also named cannon nail guns and mini integrated shooting nail fasteners, are powered by integrated shooting nail cartridges. No air compressor, power supply or electric drill is required. Operators can complete ceiling, pipeline and bracket fixing on the ground without climbing ladders, realizing dust-free and high-efficiency construction. The series includes compact handheld mini models and extended dedicated ceiling models, equipped with multi-level power adjustment, multi-layer silencing and automatic slag discharge structures. All core parts are forged and quenched by alloy steel with high strength and impact resistance. The heat-insulating anti-slip sleeve prevents scalding during long-time operation. They work flexibly in narrow gaps, high-rise ceilings and hydropower renovation, and can penetrate red bricks, concrete, thin steel plates and color steel plates.
1. Main Housing: Thickened integrated alloy steel, rust-proof, corrosion-resistant, impact and pressure resistant, free of deformation after long-term frequent construction.
2. Firing Pin Assembly: High-manganese alloy steel with high-temperature vacuum quenching, resistant to breakage and jamming after tens of thousands of shots.
3. Silencer & Nail Head: Thick alloy steel with multi-hole noise reduction design to buffer impact and lower operation noise.
4. Main Power Spring: High-carbon manganese steel spring with stable elastic rebound, anti-fatigue for long service life.
5. Heat-Insulating Anti-Slip Grip: Outer rubber soft sleeve isolates high temperature and dampens vibration, avoiding slipping and scalding during long holding.
6. Extension Rod: Seamless stainless steel tube, lightweight and high-strength for overhead ceiling operation from ground.
1. Types: Mini handheld model, extended engineering ceiling model (compatible with telescopic extension rods)
2. Adjustable Power: Multi gears for wood, red brick, concrete and thin steel plates
3. Compatible Fasteners: Ceiling round nails, pipe clamp nails, hook nails, fire protection special integrated nails
4. Applicable Base Materials: Concrete, red brick, light steel keel, color steel plate, thin steel plate, solid wood board

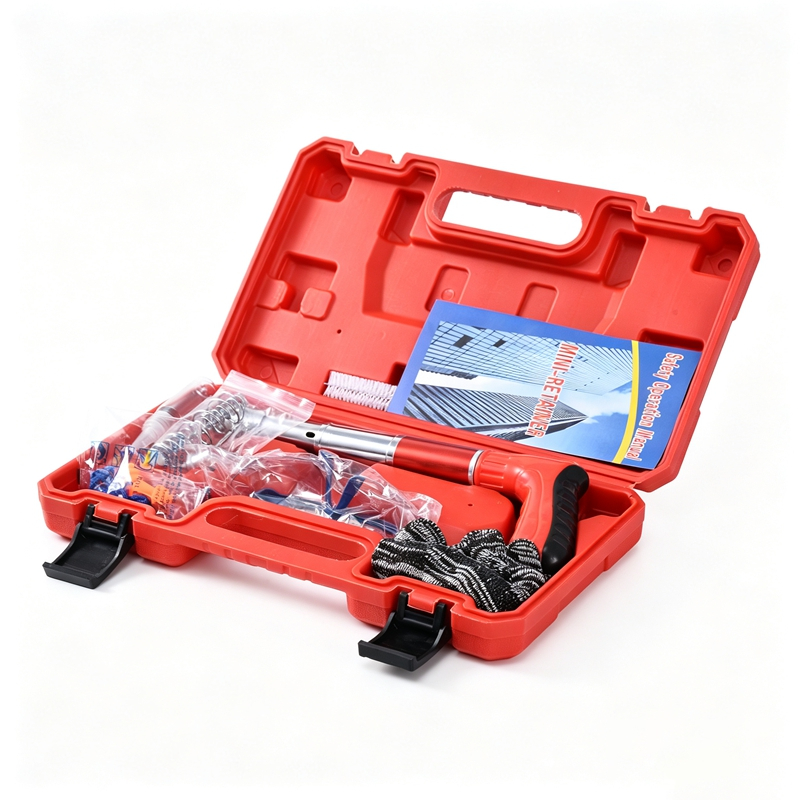

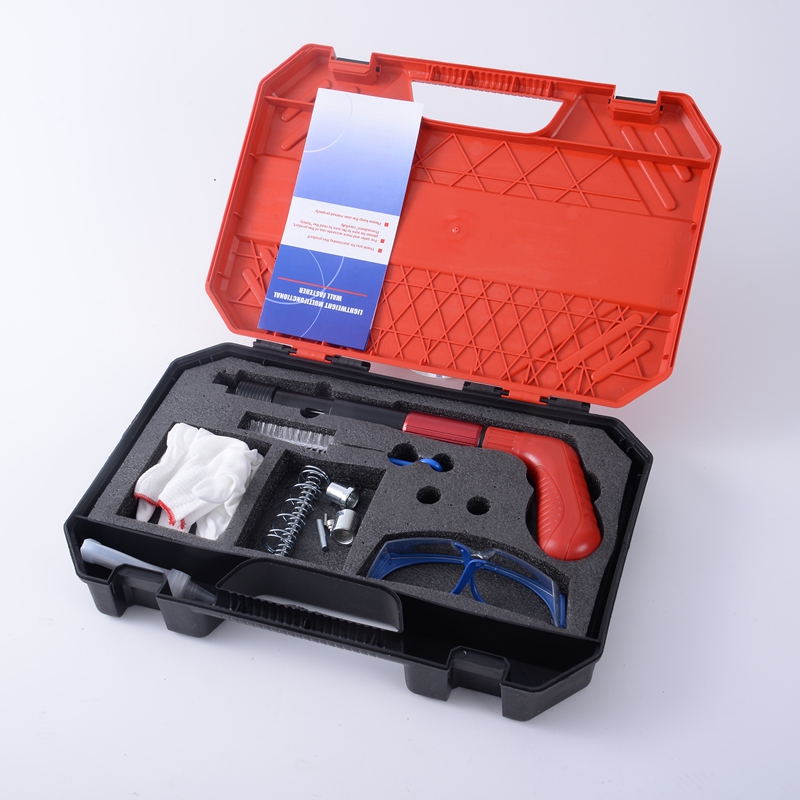

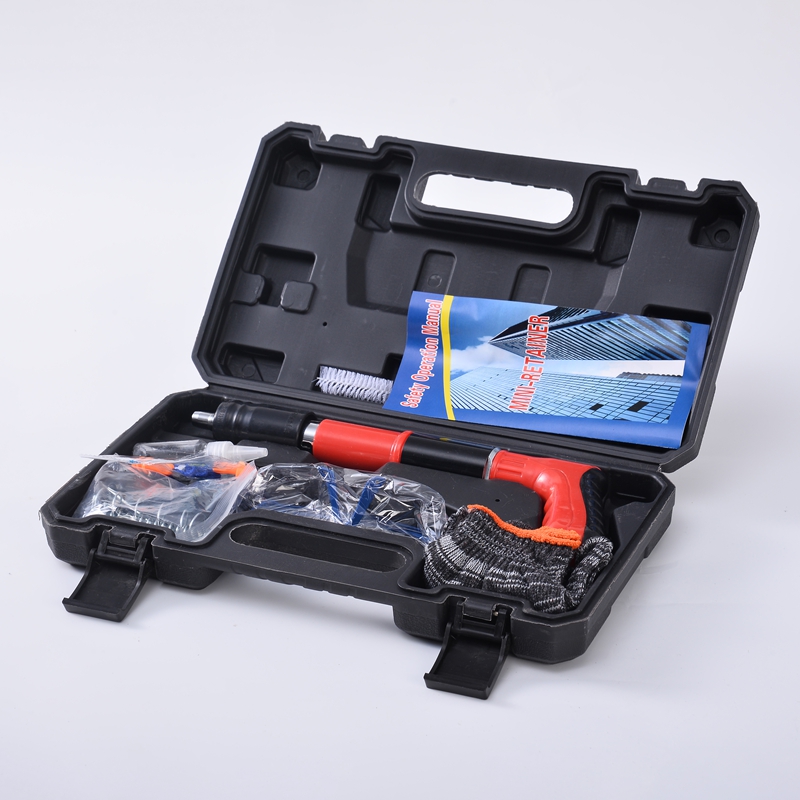

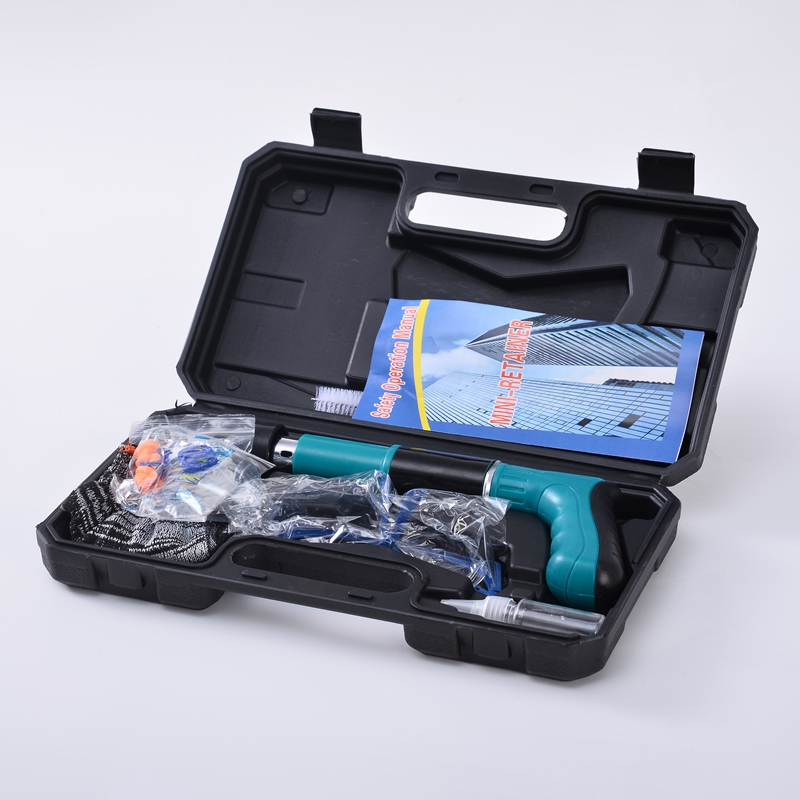

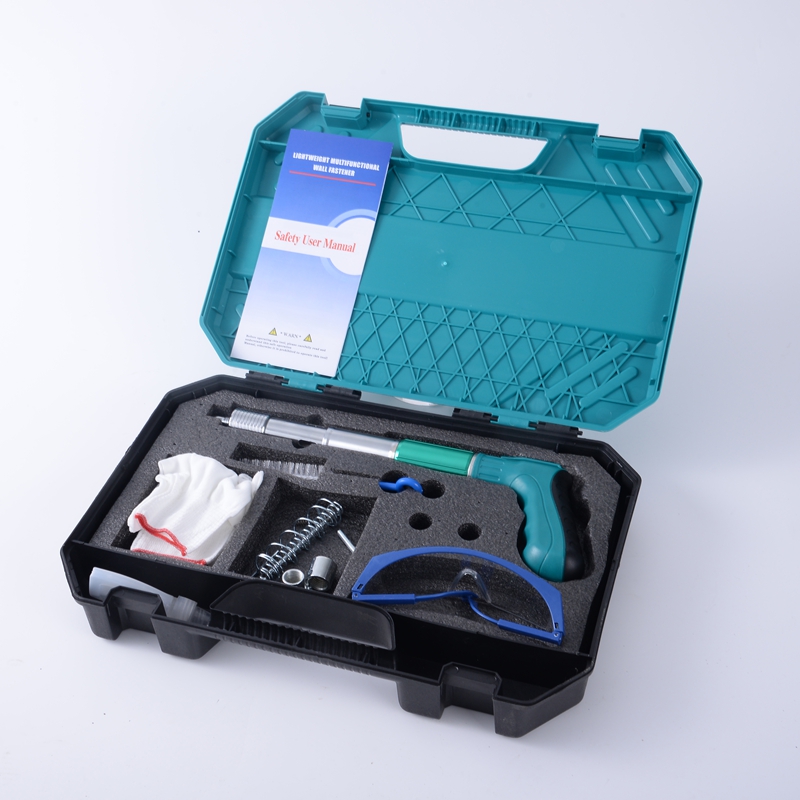

1. Mini Handheld Cannon Nail Gun
Compact single-hand body with built-in noise reduction and lightweight power adjustment. Ideal for wire troughs, monitor brackets, wall hangers, small pipe clamps and light hardware installation. Perfect for sporadic home maintenance and partial decoration reinforcement, accessible to blind spots such as cabinet corners.

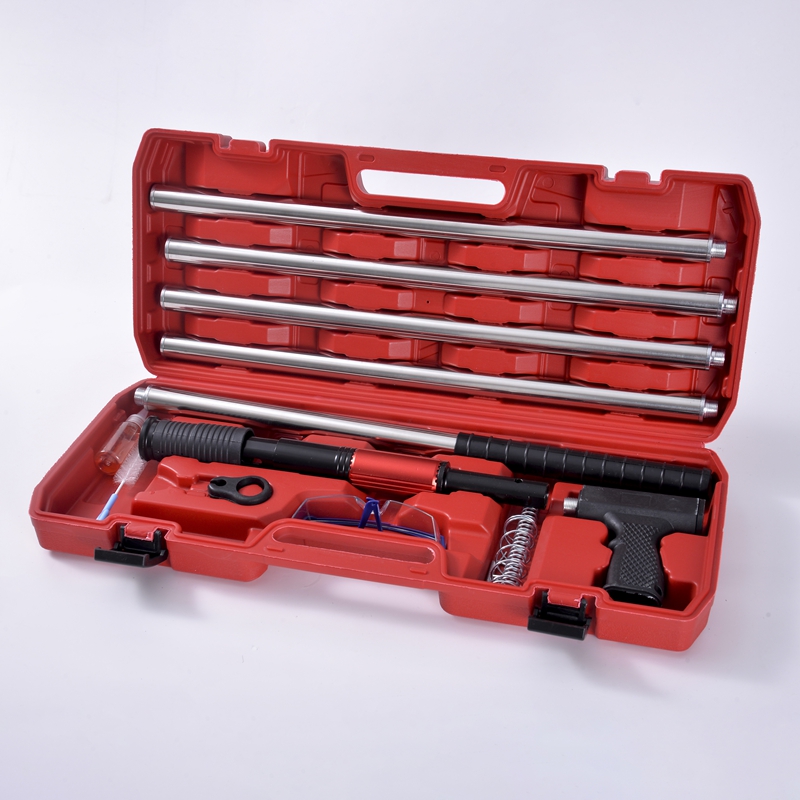

2. Extended Ceiling Fastener (Engineering Heavy-Duty Type)
Matched with multi-section telescopic rods to install ceiling components from ground without ladders. Featuring strong load-bearing capacity, widely used for ceiling keels, fire & ventilation pipes, factory steel structures, window angle brackets and storage racks. It effectively eliminates safety hazards of high-altitude work and serves as core equipment for decoration, hydropower and fire engineering teams.
1. No electricity or air source needed; one-touch firing eliminates drilling and expansion screw installation to simplify construction steps.
2. Multi-stage adjustable power fits soft and hard walls & steel plates without substrate cracking or penetration.
3. Built-in automatic slag discharge channel removes gunpowder residues to reduce nail jamming and misfire rate.
4. Wear-resistant all-alloy steel mechanism with universal spare parts for low long-term maintenance cost.
5. Multi-layer silencing structure greatly cuts working noise without disturbing residents during home renovation.
6. Pressure-trigger safety lock only fires when tightly attached to workpieces to prevent accidental shooting injury.
Ceiling keel installation, hydropower pipe clamp fixing, fire & ventilation pipeline erection, monitor & lamp bracket mounting, window angle bracket fastening, factory steel & color steel plate assembly, advertising frame fixing, household small hardware installation.
1. Only use matched standard integrated shooting nails; cartridge modification and non-standard inferior nails are prohibited.
2. Safety goggles and work gloves must be worn during operation; never point the muzzle at people or flammable materials like gasoline and paint.
3. Adjust power gear according to wall hardness; excessive force will penetrate plates and damage base layers.
4. Confirm no shooting nails remain inside before clearing residues or disassembling for maintenance.
5. Clean internal slag and wipe anti-rust before long-term storage, and store the tool in cool, dry and ventilated space.
